Brand Name : Cersol
Place of Origin : China
MOQ : 1pc
Payment Terms : T/T
Packaging Details : BAGS, BARRELS, CARTONS
Applications : Industrial Ceramic, For Grading or Bearings
Material : silicon nitride
Type : Ceramic Parts, Silicon Nitride Ceramic Disc
氮化硅 (Si3N4) 比钢轻 60%,但强度足以承受各种行业中一些最苛刻的应用.这种轻质,高强度的陶瓷材料可用作不锈钢,超级合金,碳化钨和第一代陶瓷(如 Al2O3 和 ZrO2)的替代品.与其他陶瓷材料相比,它具有出色的抗热冲击性和高断裂韧性,与有色金属熔体的兼容性以及更高的结构可靠性.

| Si3N4陶瓷 | 颜色 | 黑色的 | |
| 密度(克 /立方厘米) | ≥3.2 | ||
| 弯曲强度(MPa ) | >790 | ||
| 维氏硬度(Hv ) | 1400-1600 | ||
| 断裂韧性( MPa·m 1/2 ) | 6.1 | ||
| 弹性模量( GPa ) | 310 | ||
| 泊松比 | 0.26 | ||
| 表观孔隙度 | 0.50% | ||
| 热膨胀系数 (×10 -6 /℃) | 3.3 | ||
| 最高工作温度, (℃,空气中) | 800 | ||


|
|

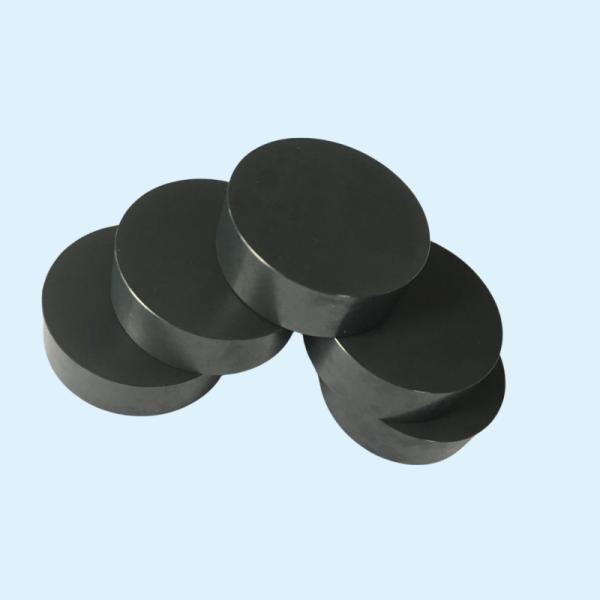

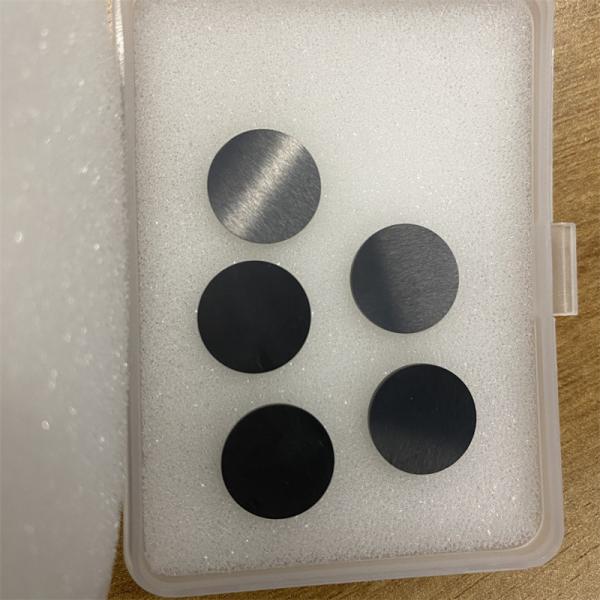

Excellent Wear Resistance Si3N4 Silicon Nitride Ceramic Disc / Disk Images |
